The iPhone diagnostic report
your customer can verify.
PhoneVitals talks to the iPhone's own chips over a USB cable — the battery gas gauge, the power IC's black box, kernel panic logs — and turns them into a signed report with a QR code. Your customer scans it and sees the same findings on this site.
No subscription · pay per scan · 30-day refund
It reads what the phone hides
Every check reads the hardware's own counters — never a guess. Each verdict ships with the raw evidence, so your technician and your customer can both see why.
Battery cell forensics
Reads the gas gauge's private diary: the deepest voltage the cell ever hit, thermal abuse events, the internal-resistance curve at each charge level, and a real ESR measurement in milliohms. Reset cycle counters and reflashed gauges show up immediately.
Fraud & frankenphone detection
Serial pairing checked across board, battery, display and cameras. Board ID against model identity. Decade-aware serial decoding. Refurbishment markers. If someone lied about this phone, the report says so — with the evidence attached.
Panic-log decoding
Kernel panics decoded down to sensor tokens: TG0B → the battery temperature line, Prs0/Mic1 → the charge-port flex, Mic2 → the power-button flex. The exact flex cable, not "something crashed".
Board-level suspects
Known failure patterns mapped to real board designators — U3101 audio-IC loop disease, Tristar/Hydra charging deaths, backlight filters — each with a confidence label and instructions for the bench.
Leakage & short-circuit probes
Two software ammeters quantify abnormal quiescent drain in milliamps — the signature of a shorted capacitor — before you ever reach for the thermal camera.

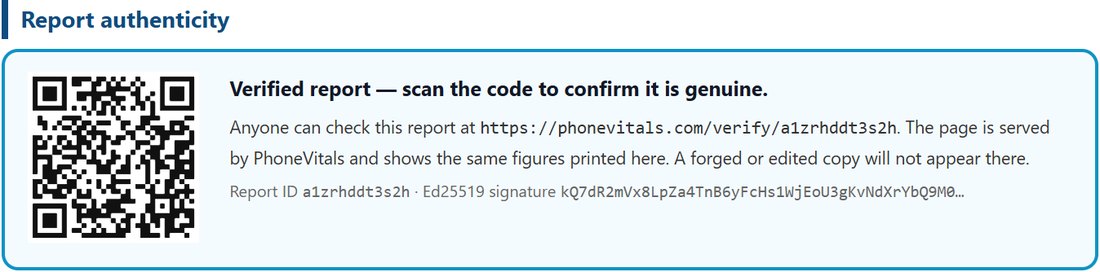

Reports customers can verify
Every paid report is signed on our server with an Ed25519 key and carries a QR code. Your customer scans it and sees the authentic report here. A forged or edited copy simply will not verify.

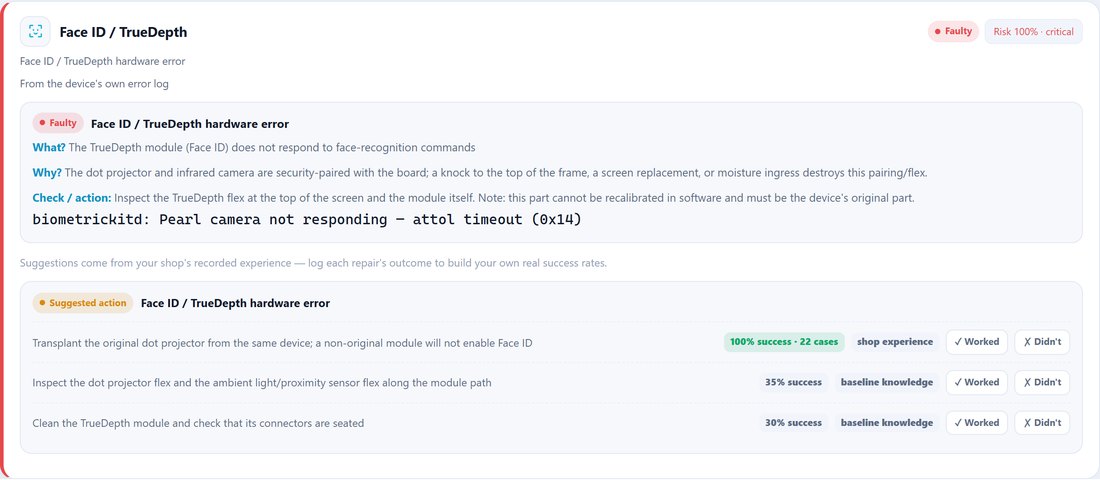

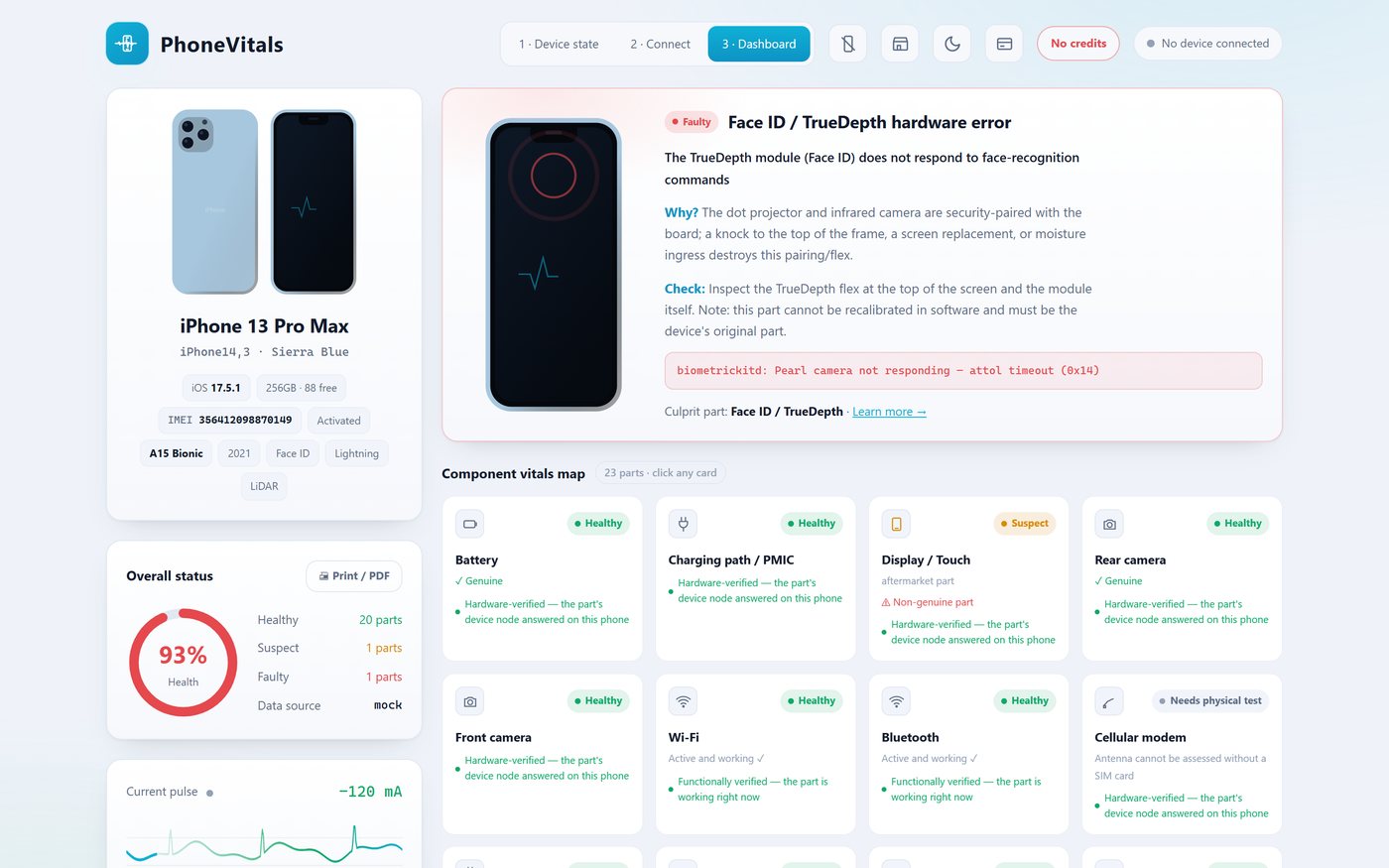

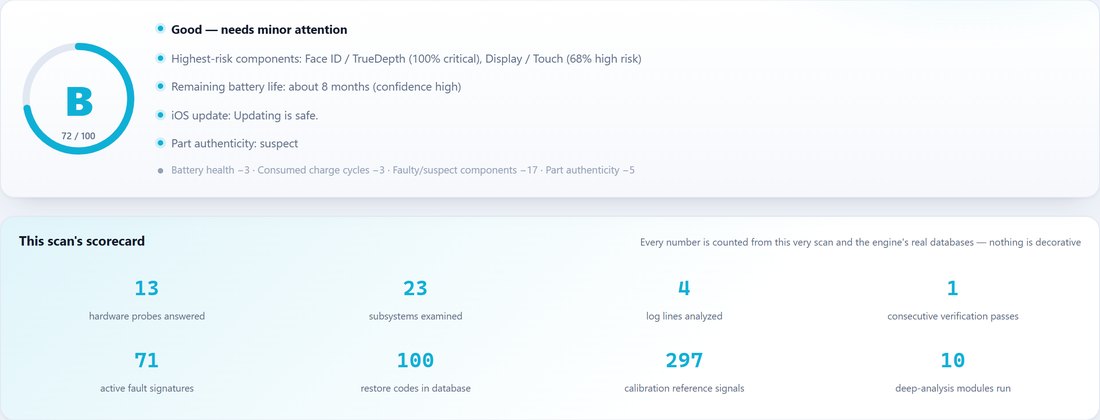

See what your customer sees
Screens from the software itself, on a sample scan. Nothing here is a mockup — this is the actual output.
Three steps, about two minutes
No jailbreak. Nothing installed on the phone. Nothing left behind.
Plug in the iPhone
Any iPhone 6s through the iPhone 17 family, over a normal USB cable. Tap "Trust" on the phone — that is the whole setup.
Run one scan
A multi-pass verified scan reads 23 subsystems, the battery gauge, the panic logs and the power IC's boot black box.

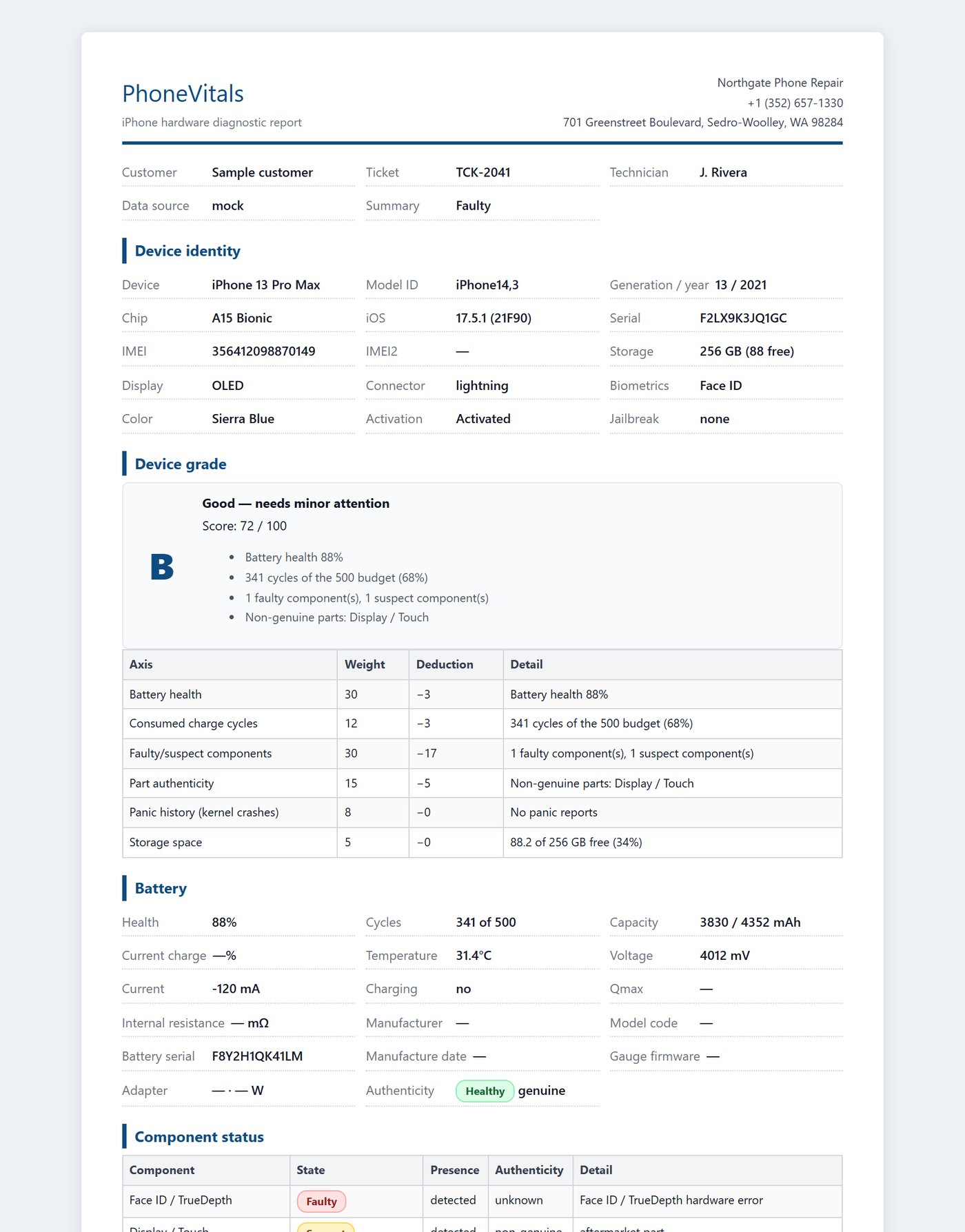

Hand over the report
A signed, QR-verifiable report. Print it, or let the customer scan the code and check it live on this site.
Pay per scan. Nothing else.
One credit = one full device scan, signed report and QR verification included. No subscription, no seat licences, no lock-in. Credits never expire.
- Full diagnostic scan
- Signed report + QR
- Every feature included
- Everything in single
- 2 computers
- Everything in 25-pack
- 3 computers
- Future top-ups use the current price shown on the site
- Everything above
- 10 computers
- Priority support
Your first scan on every computer is free. Report verification is always free for your customers.
Buy credits
No account. No card. Send the exact amount shown and your licence key appears on this page by itself, usually within a minute.
Your key is emailed to you and this becomes your account, so you can recover it later, add a second computer, and have future top-ups land on the same key. Optional — but without it a lost key cannot be recovered.
The final digits are your order's fingerprint. Send this amount exactly and our system recognises your payment on its own — that is why no account is needed.
TNx3LhYSKpSpSco1MYLMLShF2xngPznrhQ
Download PhoneVitals
Install it, plug in a phone, and your first scan is free — no licence needed to see exactly what it finds.
Reading this on a phone?
PhoneVitals runs on the Windows PC at your bench, not on the phone you are testing. We can put the link on that computer for you.
Windows 10 / 11 · 64-bit
A single folder — no installer, no drivers to hunt for, nothing written outside your own user folder. Unzip it and run PhoneVitals.exe.
Download for WindowsScanned by, and clean on
- Microsoft Defender
- BitDefender
- ESET NOD32
- Sophos
- Symantec
- McAfee
- Malwarebytes
- CrowdStrike
- Avast
- AVG
- Avira
- Trend Micro
- Emsisoft
- Fortinet
- SentinelOne
- Panda
- Dr.Web
- G DATA
- Acronis
What you need
- Windows 10 or 11, 64-bit
- Apple Mobile Device driver (comes with iTunes, or install it from Apple)
- A working USB cable and "Trust" tapped on the phone
- An internet connection to spend a credit and sign the report
Already bought credits? Open the app, click the licence button in the top bar and paste your key — or find it any time in your account.
Questions shops actually ask
Which iPhones are supported?
iPhone 6s through the iPhone 17 family (including 16e and Air), on Windows 10 and 11. The scan uses Apple's own USB diagnostics protocols — no jailbreak, and nothing is installed on the phone.
Is it safe for the customer's phone?
Yes. PhoneVitals only reads. It uses the same diagnostics interface Apple's own tools use, makes no changes to the device, installs nothing and leaves nothing behind.
How accurate is it?
The engine is calibrated against an 82,458-line corpus of real device telemetry and 297 hardware signals measured on real phones. Our labelled benchmark currently runs at 0 errors across 703 checks, and every verdict is printed with the raw evidence behind it — we show our work rather than asking you to trust a number.
What exactly stops someone forging one of my reports?
Each paid report is signed on our server with an Ed25519 private key that never leaves it, and carries a unique QR code. Anyone can check a report at phonevitals.com/verify and can also verify the signature themselves against our published public key. Altering a single digit invalidates the signature.
Why payment in USDT?
It settles in minutes anywhere in the world, with no chargeback fraud and no card data to protect. It also keeps the price at $0.29–$0.99 per scan instead of losing a third of that to processor fees. Our 30-day refund covers you either way.
Does it work without internet?
Scanning and analysis run entirely on your PC. A connection is needed only to spend a credit and to sign the report for QR verification — the two things that must be genuine.
Can it really see inside the battery?
The battery's gas-gauge chip keeps a private log: the minimum voltage ever reached, thermal events, an internal-resistance table per charge level, real cycle data. PhoneVitals reads and interprets all of it — including the tricks, like reset counters and reflashed gauges.
